Commercial Applications for LED Channel Letters: Engineering, Certified Manufacturing and Installation Guide

For commercial property developers, architects, and professional sign makers, choosing the right illuminated signage dictates both architectural branding and long-term durability. As a dedicated OEM/ODM manufacturer, our complete range of illuminated letters and signage is precision-engineered to meet stringent municipal electrical codes and international safety standards.

Certified Safety and Compliance: UL / cUL Listed and CE Certified

All custom LED channel letters and cabinet light boxes are manufactured in compliance with UL 48 (Electric Signs), NEC 600 (Class 2 Low Voltage) for North America, and full CE / RoHS standards for the European Union. Certified rainproof components and tested thermal dissipation ensure smooth local building inspections.

Custom LED Channel Letter Categories

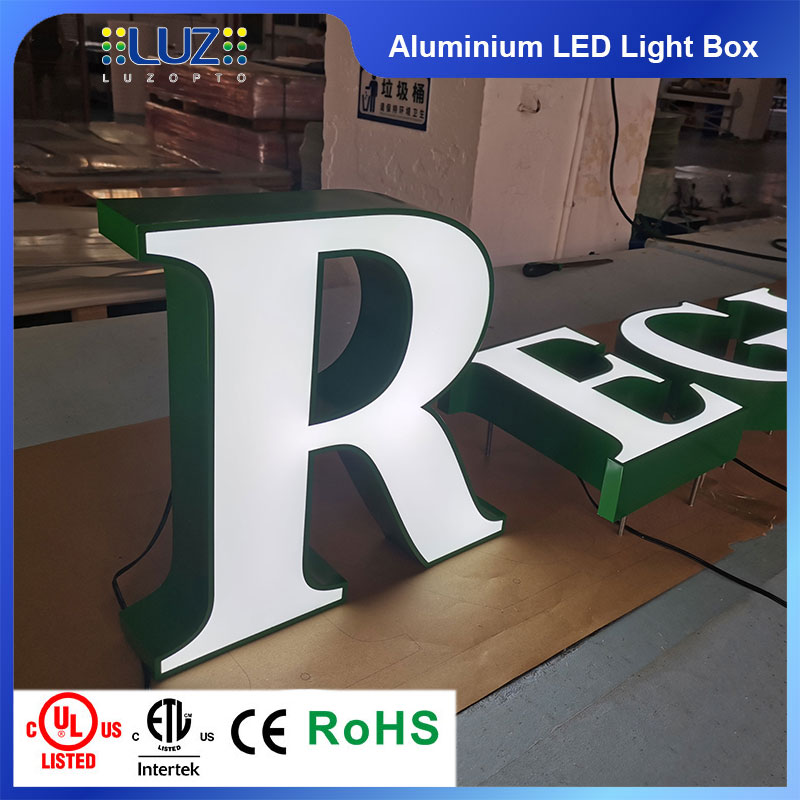

UL listed custom frontlit LED channel letters for commercial storefront signs

1. Frontlit Channel Letters

Face-Lit Standard

High-impact front-illuminated signage engineered with optical-grade cast acrylic faces and durable aluminum returns (Trimless or Trim-cap). Designed for high commercial street visibility and shopping center tenant branding.

Face: 3mm/5mm Cast Acrylic | Returns: Welded Aluminum / Stainless | Rating: IP67 Wet Location

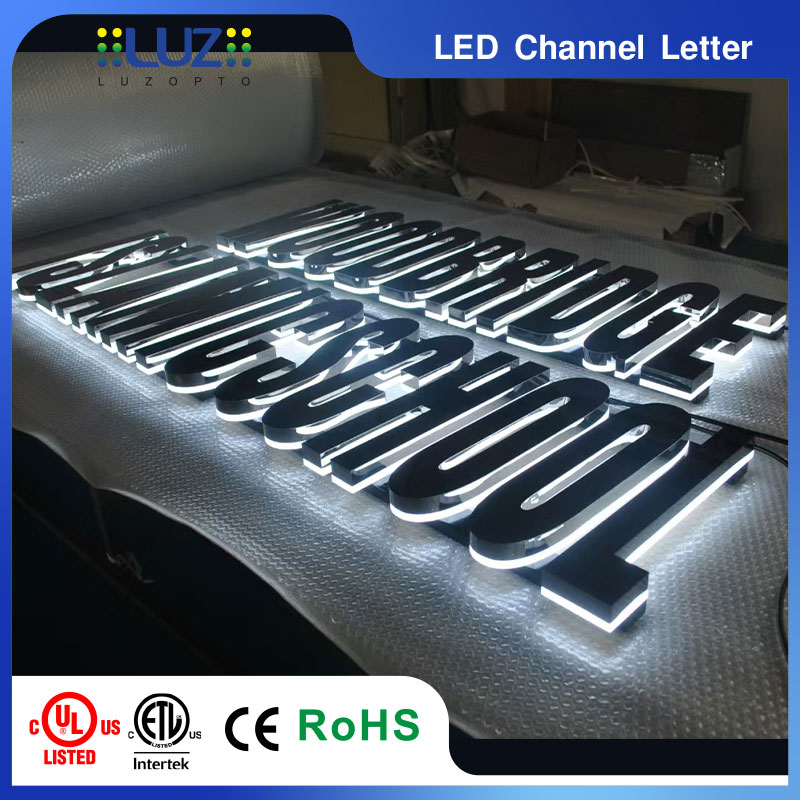

Stainless steel reverse halo lit backlit LED channel letters with standoff mounting

2. Backlit Channel Letters (Reverse Halo-Lit)

Halo-Glow Effect

Sophisticated rear halo lighting projecting a soft ambient glow onto the mounting wall. Fabricated with heavy-gauge 304/316 stainless steel face and clear acrylic backplate, elevated with precision-threaded mounting standoffs.

Material: 304/316 Stainless Steel | Mounting: 1.5 to 2 inch Standoff Studs | CCT: 3000K to 6500K

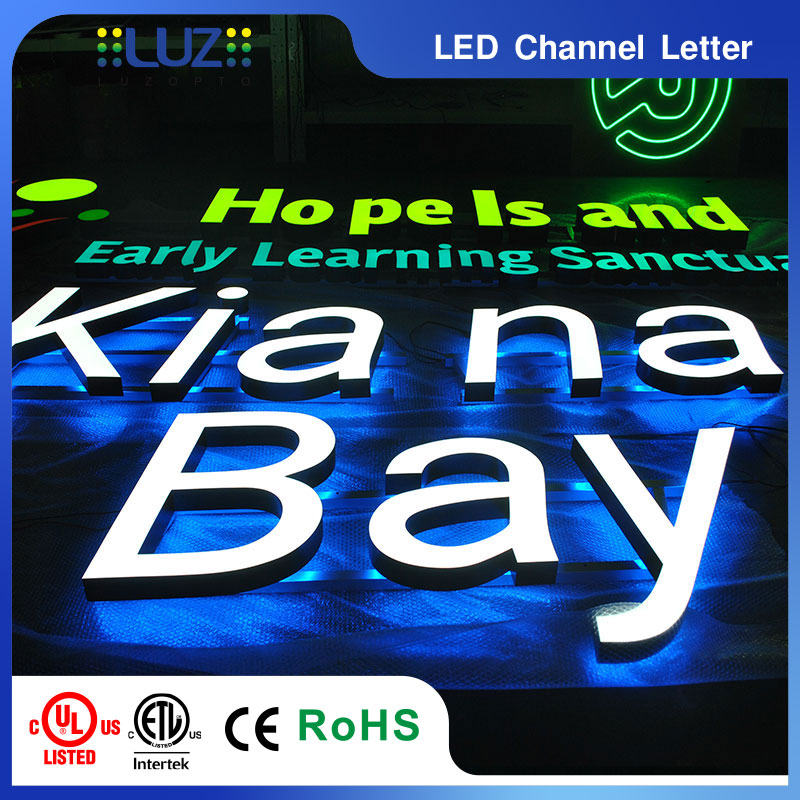

3. Front and Backlit Channel Letters (Dual-Lit)

Dual Illumination

Combines vibrant face luminescence with architectural wall halo wash. Internal baffling allows independent color control for the front face and back glow, delivering exceptional 3D contrast for premium flagship stores.

Illumination: Dual-Circuit LEDs | Returns: Metal Baffled | Voltage: Class 2 Low Voltage 12V/24V

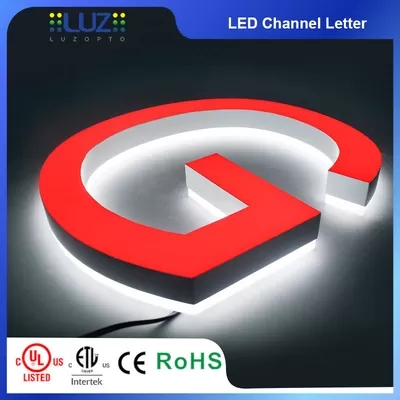

Precision CNC machined solid mini acrylic edge lit LED letters for retail interior

4. Acrylic Mini and Edge-Lit Letters

Seamless Solid CNC

Ultra-slim 3D letters carved from 20mm to 30mm solid blocks of optical acrylic with back-embedded micro LEDs. Enables sharp, intricate typography with stroke widths down to 8mm, ideal for luxury boutiques, hotel receptions, and cosmetic counters.

Structure: 100% Solid Optical Acrylic | Min Stroke: 8mm | Finish: Car-Grade Automotive Paint

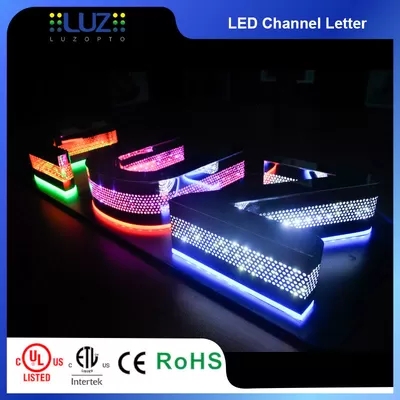

Exposed pixel punch hole open face LED channel letters for commercial facade

5. Open-Face and Punch-Hole Letters

Point-Source Output

Fabricated with CNC laser-perforated aluminum or stainless steel bodies, fitted with waterproof exposed LED pixel nodes. Delivers vintage marquee character and long-distance nighttime visibility for entertainment complexes and rooftops.

Light Source: Exposed 9mm/12mm LED Pixels | Housing: Welded 5052 Aluminum | Visibility: 1000ft+

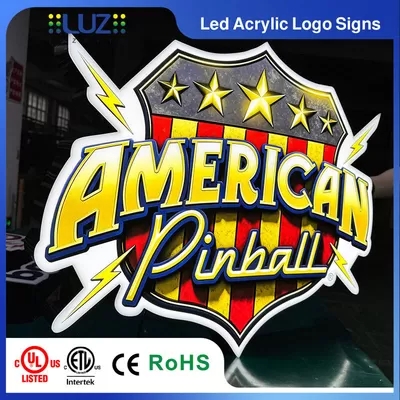

Custom aluminum cabinet push through acrylic LED light box and projecting blade sign

6. LED Light Boxes and Custom Logo Signs

Push-Thru and Blade

Custom heavy-duty aluminum cabinet boxes featuring 3D push-through laser-cut acrylic lettering, contoured profiles, and double-sided projecting blade signs. Uniform edge-to-edge illumination without shadows or hotspots.

Profile: Extruded Heavy Aluminum | Sign Face: Routed Metal + Push-Thru | Style: Wall / Projecting

Commercial Application Matching Guide

Retail Plazas and Strip Centers

Recommended: Front-Lit / Raceway Mount

Engineered for high daylight contrast and maximum nighttime luminance. Utilizing raceway mounts minimizes exterior wall penetrations to satisfy shopping center property rules.

Corporate and Financial Centers

Recommended: Reverse Halo-Lit (Stainless)

Subtle architectural elegance with low forward glare. Fabricated with brushed 304/316 stainless steel to complement architectural stone, glass curtain walls, and composite facades.

Boutiques and Interior Branding

Recommended: Solid Mini Acrylic / Edge-Lit

Built for close-up viewing and delicate font strokes down to 8mm. CNC precision milled from solid acrylic blocks with high-end automotive-grade paint finishes.

Entertainment Venues and Rooftops

Recommended: Exposed Pixel / Heavy-Gauge Box

Designed for extreme viewing distances exceeding 1,000 feet. Features reinforced welded 5052 aluminum structures designed to withstand high wind load pressures.

B2B Material Selection Matrix

Component	Standard Commercial	Heavy-Duty / Coastal	Engineering Standard
Letter Face	3/16 inch (4.5mm) Cast Acrylic	High-Impact Polycarbonate	UV resistant, anti-yellowing cast acrylic
Returns (Sides)	0.040 inch Formed Aluminum Coil	0.063 / 0.080 inch Welded Aluminum	Corrosion-proof 5052 alloy or 304/316 stainless
Backplate	0.040 inch Mill Aluminum	0.063 inch Clear / Frosted Acrylic	CNC weep holes drilled for drainage
LED Modules	IP65 SMD 2835 (12V)	IP67/IP68 Constant Current (12V/24V)	160-deg optical lens, 50,000 hour lifespan
Power Units	UL Class 2 Rainproof Power Supply	IP67 Mean Well Class 2 Unit	UL/cUL and CE compliant (NEC 600)

Mounting and Installation Methods for Contractors

Direct Flush Mount: Standalone letters anchored straight to the facade via studs and spacers. Offers the cleanest architectural presence, requiring wire runs behind each letter.

Raceway Mount: Pre-assembled on a color-matched aluminum raceway housing all power supplies and primary wiring. Requires only 3 to 4 building wall penetrations, widely demanded by shopping mall landlords.

Backer Plate / Wireway: Mounted on routed ACM (Aluminum Composite Material) panels for swift installation over uneven masonry, corrugated steel, or tile surfaces.

Frequently Asked Questions (FAQ)

Are your LED channel letters certified for North American and European inspections?

Yes. Our products are manufactured to comply with UL/cUL requirements under UL 48 standards for electric signs and utilize Class 2 low-voltage power units (NEC 600). We also provide full CE and RoHS conformity for projects installed in the European Union.

What is the primary difference between Direct Mount and Raceway Mount?

Direct Mount attaches each letter individually to the wall for a seamless floating aesthetic, requiring individual wire holes per character. Raceway Mount fixes all letters to a shared aluminum extrusion box containing power supplies, minimizing wall penetrations to just a few mounting bolts.

Why are drainage weep holes required on outdoor channel letters?

Ambient temperature variations inevitably cause condensation inside enclosed metal cans. Pre-drilled CNC weep holes located at the lowest gravity point of each letter allow moisture to escape, preventing electrical short circuits and interior discoloration.

Do you provide 1:1 mounting templates and complete installation hardware?

Yes. Every wholesale project order includes a full-scale (1:1) computer-plotted paper or vinyl mounting pattern clearly indicating standoff stud locations, wire feed points, and leveling centerlines to expedite on-site field installation.
